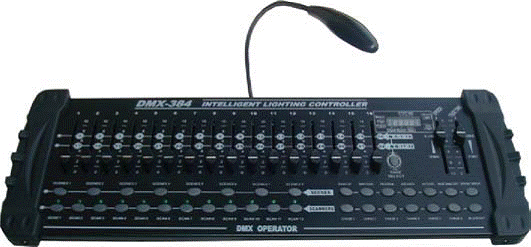

DMX-384 Controller


DMX512/1990 Standard -Total of 384 output  channels
Can control 12pcs DMX lighting fixtures with 32 DMX channel each
30 banks of 8 programmable scenes
16 slider for manual control of channels
Run last CHASE or BANK continuous  when power on again
MIDI control over banks, chases and blackout
Records up to 6 programmable chases with fade time and speeds
LED function and program display
Built in microphone for music triggering
Auto mode program controlled by fade time sliders
DMX in/out: 3 pin male/female XRL LED lamp connector

 Power input: DC 9-12V 1000ma min
Dimensions(mm): 520 x183 x 73
Net Weight:3.0Kgs
